Tanner 솔루션은 파운드리 호환 PDK, 빠른 학습 곡선을 위한 직관적 인 사용자 인터페이스와 고도로 통합 된 End-to-End Flow 를 통해 유저의 개발 환경에 맞게 다양한 구성을 할 수 있으며, 최소한의 비용으로 완벽한 Analog/Mixed-Signal IC Design 설계를 제공합니다.

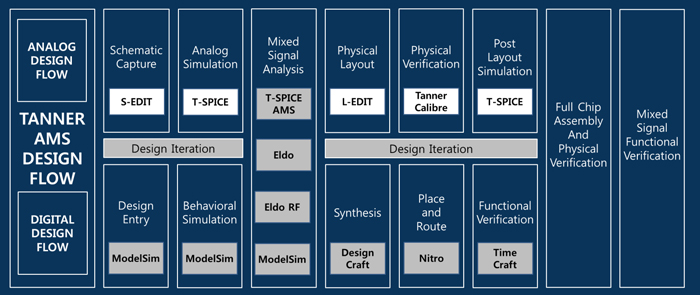

그림-1. Tanner AMS Design Flow
해당 Flow 에서 Schematic Capture S-EDIT 와 같은 각각의 Flow 를 클릭하면, 해당 Flow 설명 페이지로 이동합니다
그림-1 과 같이 Tanner AMS Design Flow 는 Analog / Digital Mixed IC 를 위한 완벽한 맞춤형 설계 프로세스 입니다. 고집적 IC 설계 회로를 위한 회로 설계:S-EDIT, Mixed Signal 시뮬레이션:T-SPICE, 시뮬레이션 결과 파형 Viewer 및 편집:W-EDIT, 물리 레벨 Layout 편집:L-EDIT 및 현재 파운드리 검증 골든 Tool 인 Calibre LVS, DRC 를 제공합니다.
Tanner EDA 는 사용하기 쉽고 직관적이며, Windows 와 Linux OS 를 지원합니다.
- OpenAccess and iPDK support
- Accurate SPICE simulator compatible with HSPICE and Verilog-A
- View simulation results directly on the schematic
- Complete hierarchical layout editor with SDL and manual-assisted routing
- Real-time, interactive DRC
- Automatically generates current mirrors, differential pairs, and arrays
- Calibre®-compatible, hierarchical DRC and netlist extraction
- Extract RC parasitics with fast 2D or ultra-accurate 3D
Tanner AMS IC Design Flow Datasheet Download

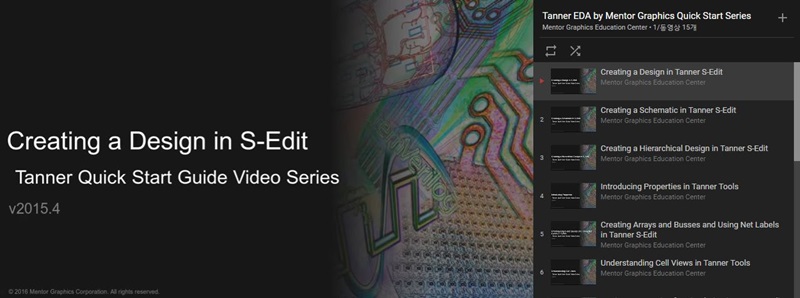

이미지를 클릭하면 Tutorial 영상을 보실 수 있습니다.
